QSG-1506F
Product Features
- High-quality anpdised aluminum profile;
- Smallest surface-mounted profile in the productrange;
- ldeal for use in confined spaces due to compactdimensions;
- Combination with a diffuser opal, clear PC coverand optic lens for different lighting required.

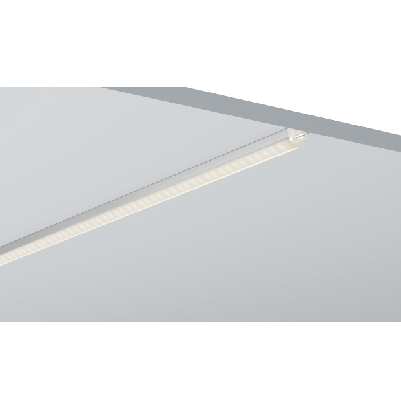

Applicable Scenarios
Widel yused in indoor,office,shopping malls，hotels and others patial scenarios.
Dimensional Drawing

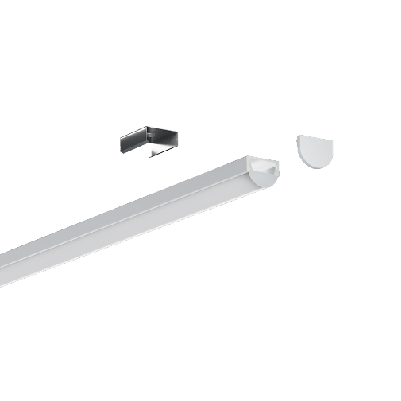

Product Composition
| Product Name | Material | RAL (Customized other colors available) | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|
| QSG-1506F ALU Silver |
|
6063-T5 |
RAL 9006
|
Surface Installation |
1000mm
2000mm
2500mm
3000mm
|
| QSG-1506F ALU Black |
|
6063-T5 |
RAL 9005
|
Surface Installation |
1000mm
2000mm
2500mm
3000mm
|
| QSG-1506F ALU White |
|
6063-T5 |
RAL 9016
|
Surface Installation |
1000mm
2000mm
2500mm
3000mm
|
| QSG-1506F ALU White |
|
6063-T5 |
RAL 9016
|
Surface Installation |
1000mm
2000mm
2500mm
3000mm
|
| Product Name | Material | Transmittance | Fire Rating | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|---|
| QSG-1506F Clear |
|
PC | 95%-90% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-1506F Diffuser |
|
PC | 80%-70% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-1506F Opal |
|
PC | 65%-60% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-1506F Black |
|
PC | 35%-30% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| Product Name | Material | Color(Customized other colors available) | Installation Method | |
|---|---|---|---|---|
| QSG-1506F End Cap |
|
PP |
Black
White
Silver
|
Push In |
