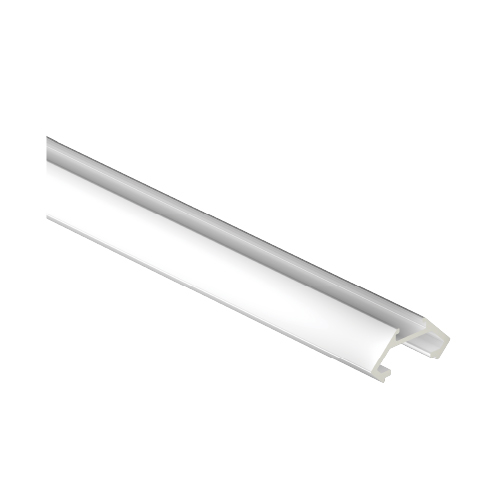

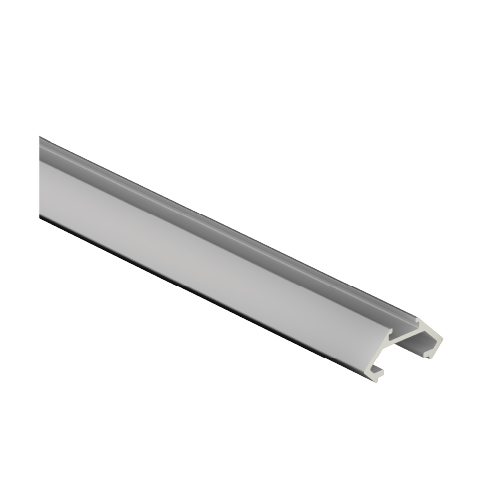

QSG-1717

Product Features

The triangular series is suitable for various regional designs without constraintsDiverse styles and multiple choices to meet different needs

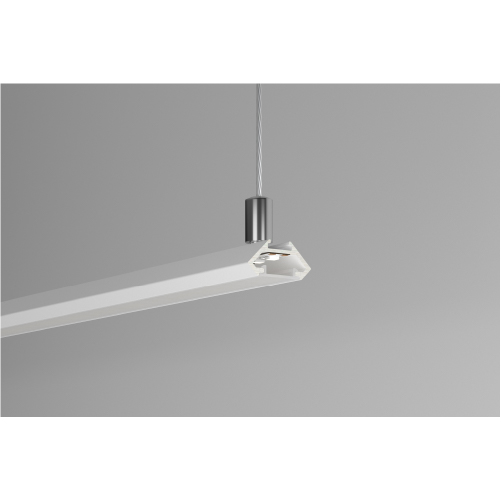

Applicable Scenarios

The triangular series is suitable for various regional designs without constraintsDiverse styles and multiple choices to meet different needs

Dimensional Drawing

Product Composition

Product Name	Material	RAL (Customized other colors available)	Installation Method	Reference Length(Other lengths can be customized)

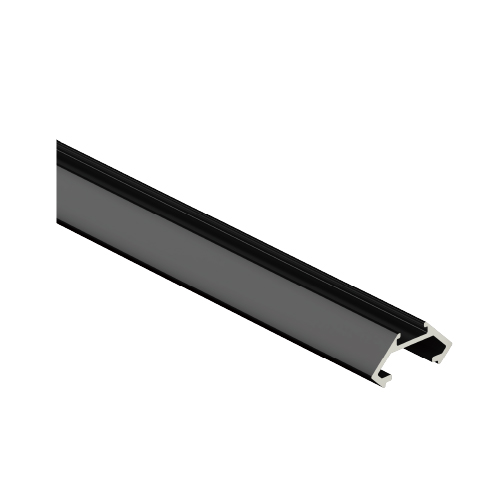

QSG-1717 ALU Black	6063-T5	RAL 9005	Insert Mounting	1000mm 2000mm 2500mm 3000mm

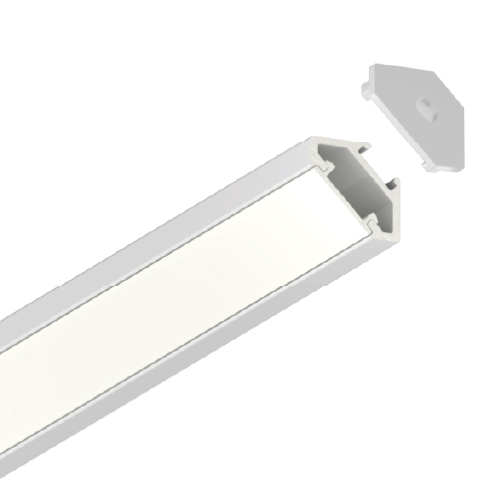

QSG-1717 ALU White	6063-T5	RAL 9016	Insert Mounting	1000mm 2000mm 2500mm 3000mm
QSG-1717 ALU Silver	6063-T5	RAL 9006	Insert Mounting	1000mm 2000mm 2500mm 3000mm

Product Name	Material	Transmittance	Fire Rating	Installation Method	Reference Length(Other lengths can be customized)

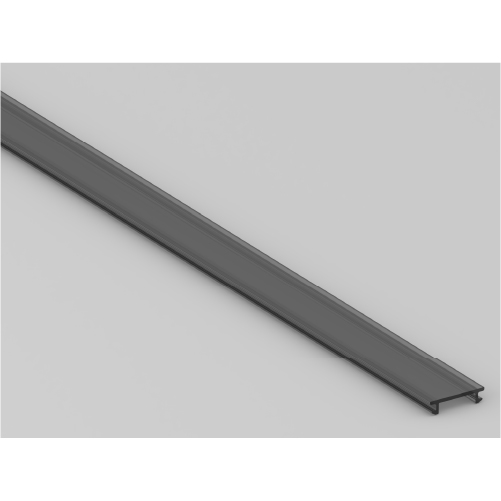

QSG-1717 Black	PC	35%-30%	V0	Push In	1000mm 2000mm 2500mm 3000mm

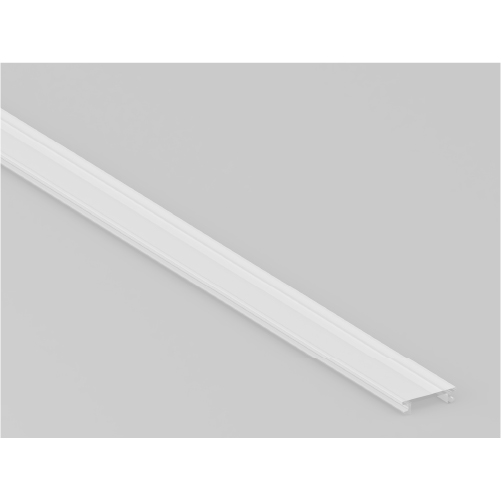

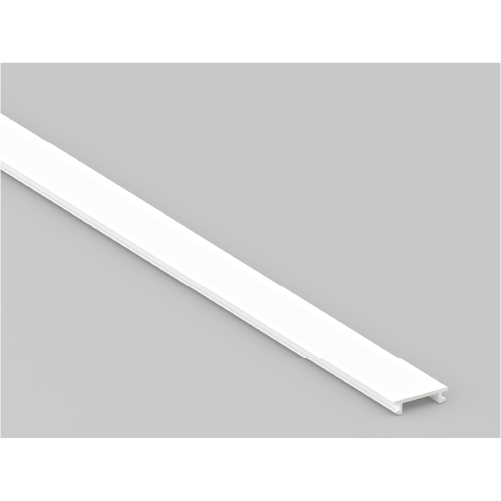

QSG-1717 Opal	PC	65%-60%	V0	Push In	1000mm 2000mm 2500mm 3000mm

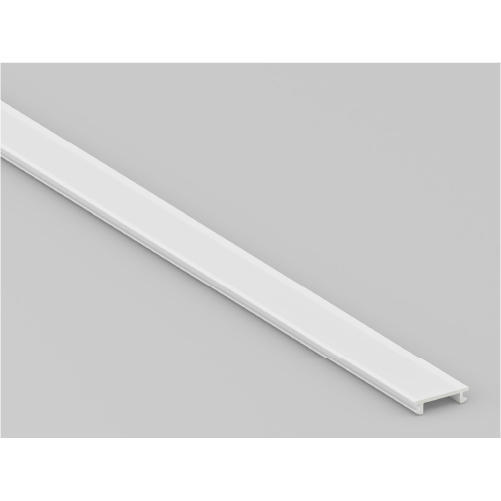

QSG-1717 Diffuse	PC	65%-60%	V0	Push In	1000mm 2000mm 2500mm 3000mm
QSG-1717 Clear	PC	95-90%	V0	Push In	1000mm 2000mm 2500mm 3000mm
