QSG-1919W
Product Features
The triangular series is suitable for various regional designs without constraintsDiverse styles and multiple choices to meet different needs

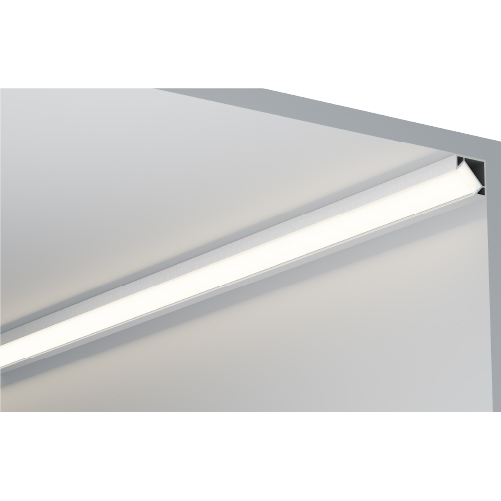

Applicable Scenarios
The triangular series is suitable for various regional designs without constraintsDiverse styles and multiple choices to meet different needs
Dimensional Drawing

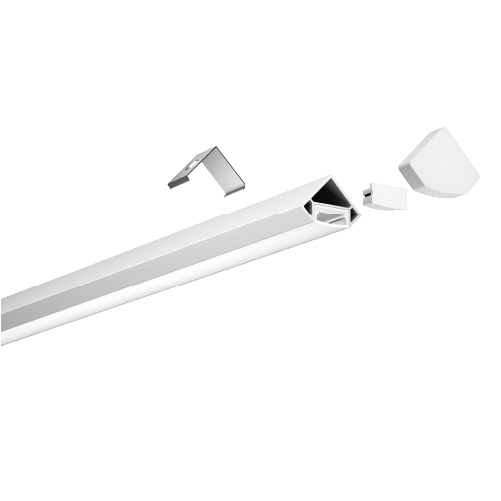

Product Composition
| Product Name | Material | RAL (Customized other colors available) | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|
| QSG-1919W ALU Black |
|
6063-T5 |
RAL 9005
|
Insert Mounting |
1000mm
2000mm
2500mm
3000mm
|
| QSG-1919W ALU White |
|
6063-T5 |
RAL 9016
|
Insert Mounting |
1000mm
2000mm
2500mm
3000mm
|
| QSG-1919W ALU Silver |
|
6063-T5 |
RAL 9006
|
Insert Mounting |
1000mm
2000mm
2500mm
3000mm
|
| Product Name | Material | Transmittance | Fire Rating | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|---|
| QSG-1919W Black |
|
PC | 35%-30% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|

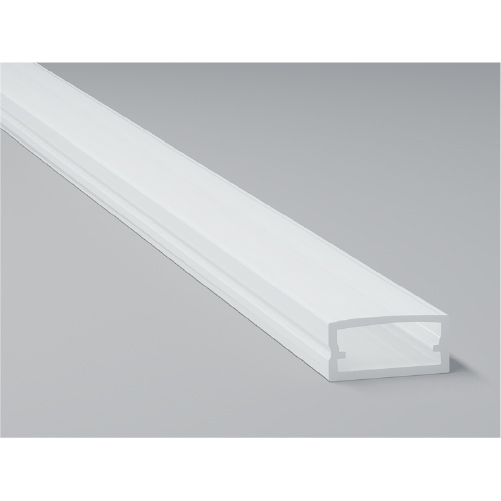

| QSG-1919W Opal |
|
PC | 65%-60% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|

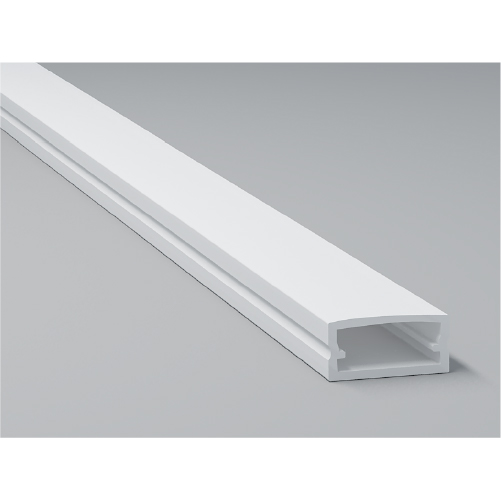

| QSG-1919W Diffuse |
|
PC | 65%-60% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|

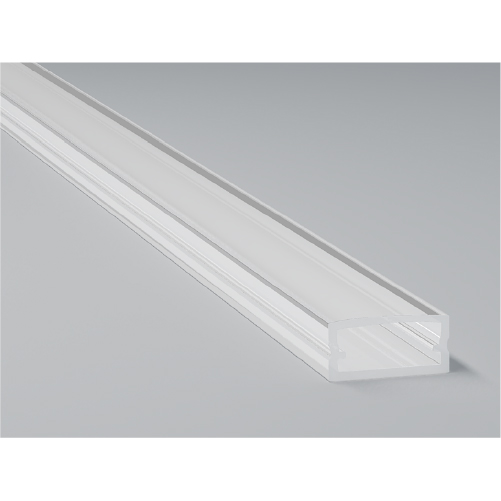

| QSG-1919W Clear |
|
PC | 35%-30% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| Product Name | Material | Color(Customized other colors available) | Installation Method | |
|---|---|---|---|---|
| QSG-1919W End Cap |
|
PP |
Black
White
Silver
|
Push In |
| QSG-1919W End Cap |
|
PP |
Black
White
Silver
|
Push In |
