QSG-2020D
Product Features
The triangular series is suitable for various regional designs without constraintsDiverse styles and multiple choices to meet different needs

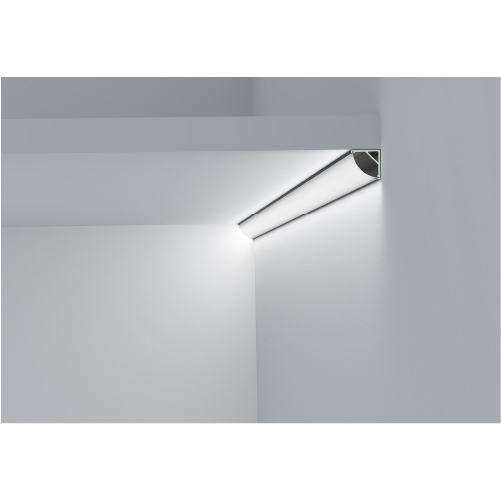

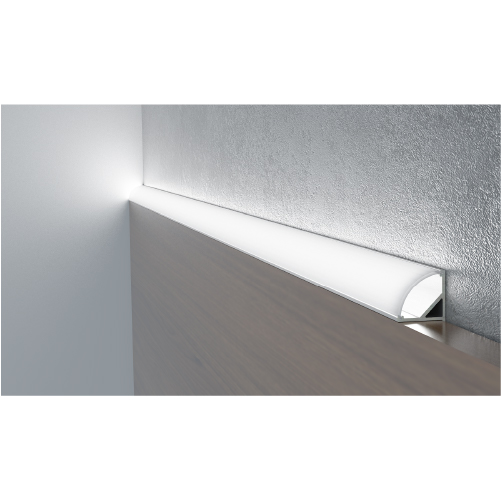

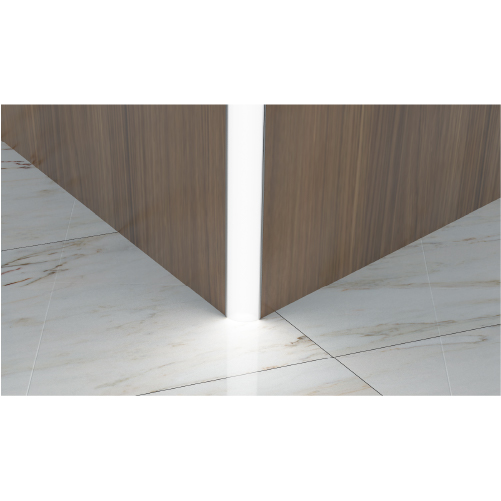

Applicable Scenarios
The triangular series is suitable for various regional designs without constraintsDiverse styles and multiple choices to meet different needs
Dimensional Drawing

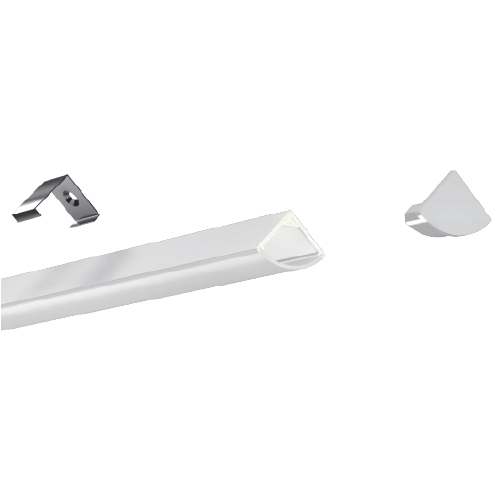

Product Composition
| Product Name | Material | RAL (Customized other colors available) | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|

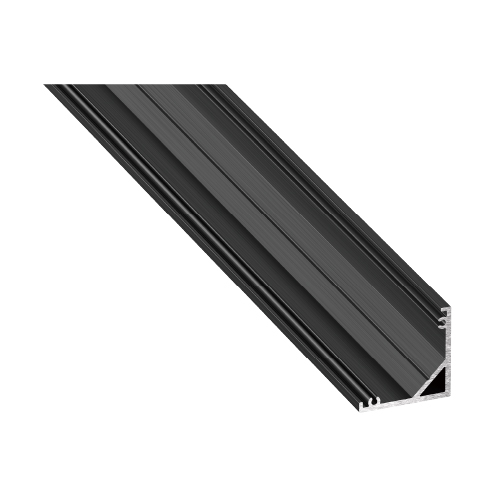

| QSG-2020D ALU Black |
|
6063-T5 |
RAL 9005
|
Insert Mounting |
1000mm
2000mm
2500mm
3000mm
|

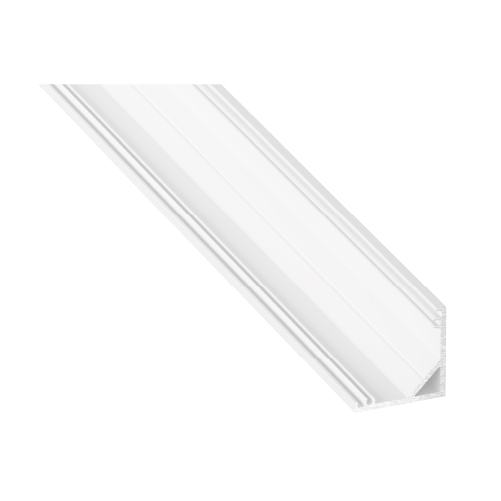

| QSG-2020D ALU White |
|
6063-T5 |
RAL 9016
|
Insert Mounting |
1000mm
2000mm
2500mm
3000mm
|

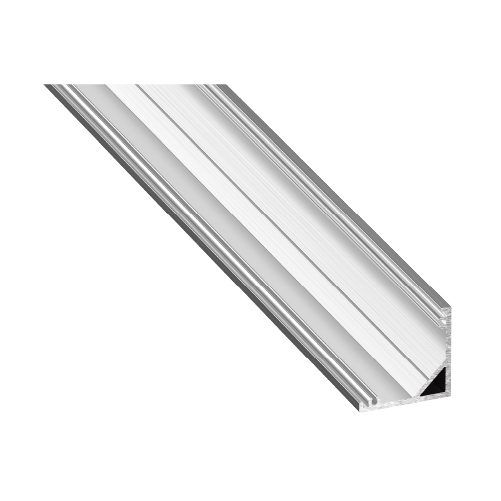

| QSG-2020D ALU Silver |
|
6063-T5 |
RAL 9006
|
Insert Mounting |
1000mm
2000mm
2500mm
3000mm
|
| Product Name | Material | Transmittance | Fire Rating | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|---|

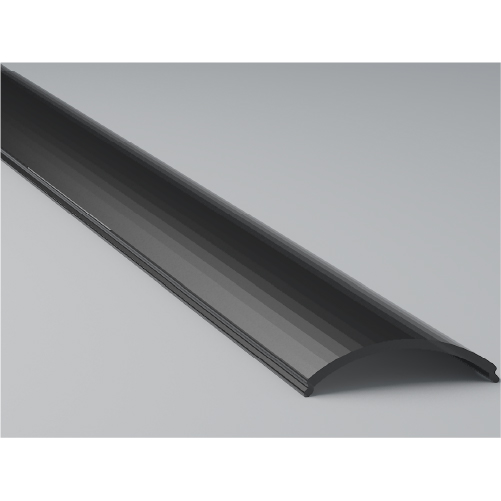

| QSG-2020D Black |
|
PC | 35%-30% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|

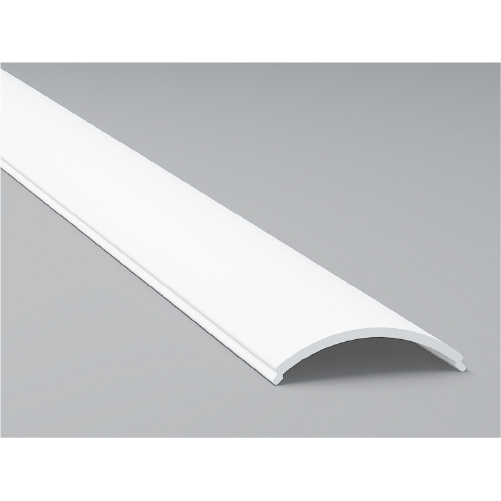

| QSG-2020D Opal |
|
PC | 65%-60% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-2020D Diffuse |
|
PC | 65%-60% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|

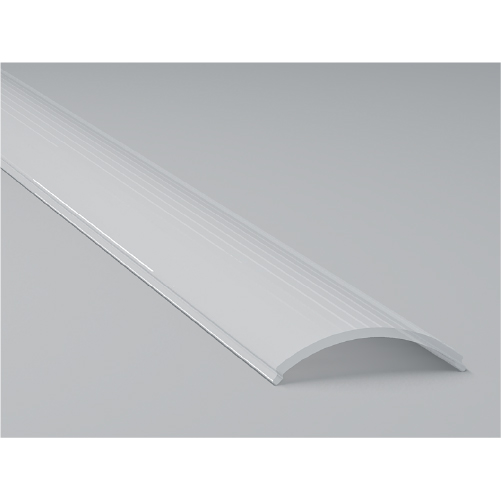

| QSG-2020D Clear |
|
PC | 35%-30% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| Product Name | Material | Color(Customized other colors available) | Installation Method | |
|---|---|---|---|---|

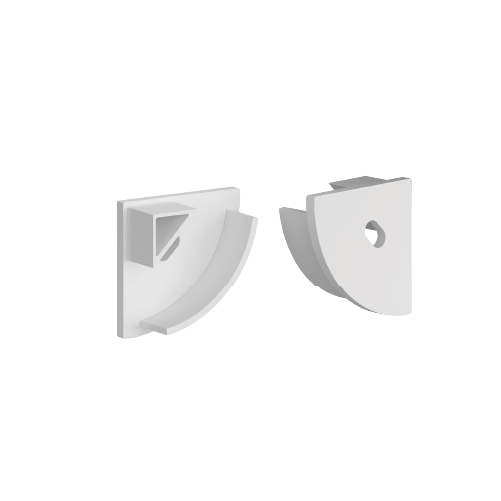

| QSG-2020D End Cap |
|
PP |
Black
White
Silver
|
Push In |
