QSG-4012
Product Features
踢脚板系列分为表面板和嵌入式装配板。表面安装无需开槽，安装简便;嵌入式安装装置嵌入墙体而不占用额外空间，保持墙面和地面视觉整洁;搭配PC或硅胶保护套使用，灯光较柔和;作为低亮度夜间基座照明，避免绊倒风险并满足环境照明需求。
Applicable Scenarios
踢脚板系列分为表面板和嵌入式装配板。表面安装无需开槽，安装简便;嵌入式安装装置嵌入墙体而不占用额外空间，保持墙面和地面视觉整洁;搭配PC或硅胶保护套使用，灯光较柔和;作为低亮度夜间基座照明，避免绊倒风险并满足环境照明需求。

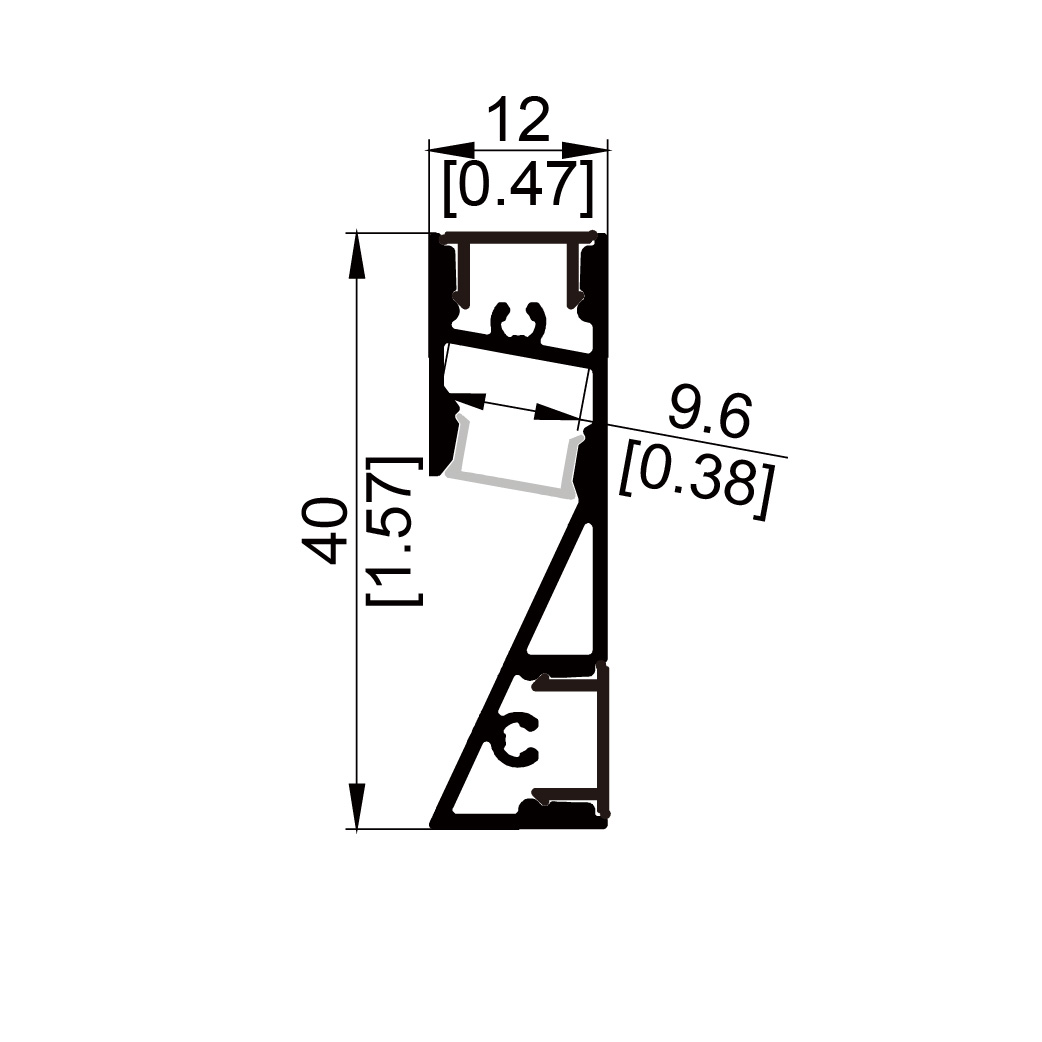

Dimensional Drawing
Product Composition
| Product Name | Material | RAL (Customized other colors available) | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|
| QSG-4012 ALU Black |
|
6063-T5 |
RAL 9005
|
Insert Mounting |
1000mm
2000mm
2500mm
3000mm
|
| QSG-4012 ALU White |
|
6063-T5 |
RAL 9016
|
Insert Mounting |
1000mm
2000mm
2500mm
3000mm
|
| QSG-4012 ALU Silver |
|
6063-T5 |
RAL 9006
|
Insert Mounting |
1000mm
2000mm
2500mm
3000mm
|
| Product Name | Material | Transmittance | Fire Rating | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|---|
| QSG-4012 Black |
|
PC | 35%-30% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-4012 Opal |
|
PC | 65%-60% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-4012 Diffuse |
|
PC | 65%-60% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-4012 Clear |
|
PC | 35%-30% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| Product Name | Material | Color(Customized other colors available) | Installation Method | |
|---|---|---|---|---|
| QSG-4012 End Cap |
|
PP |
Black
White
Silver
|
Push In |
