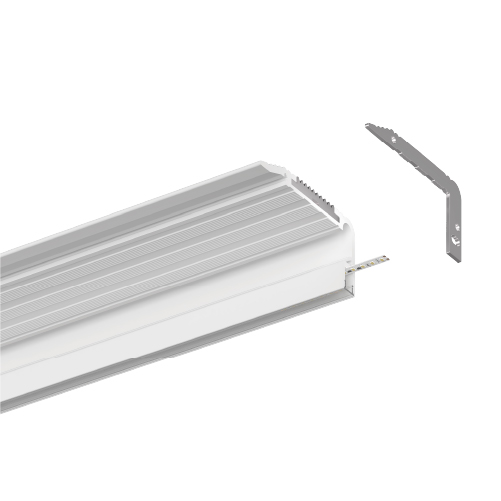

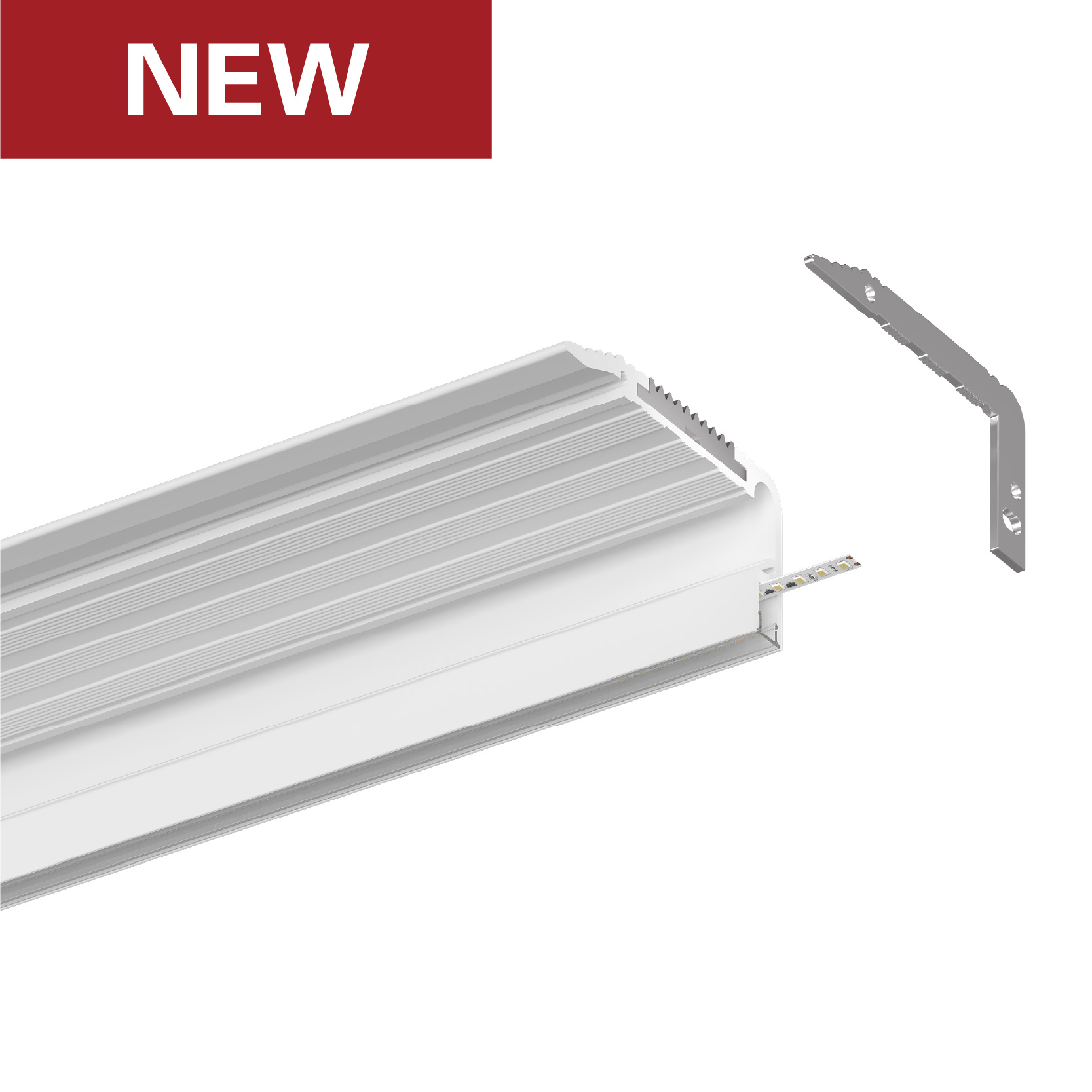

QSG-6025
Product Features
- 高品质氧化地板铝型材;
- 适合角落、楼梯和照明空间氛围;
- 扩散镜、蛋白石、透明镜片和光学设计镜头可以满足不同场景的灯光设计需求
Applicable Scenarios
广泛应用于室内、办公、购物中心、酒店及其他空间场景。

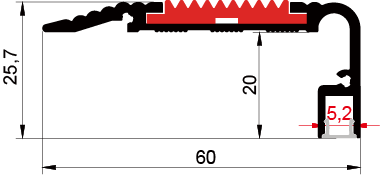

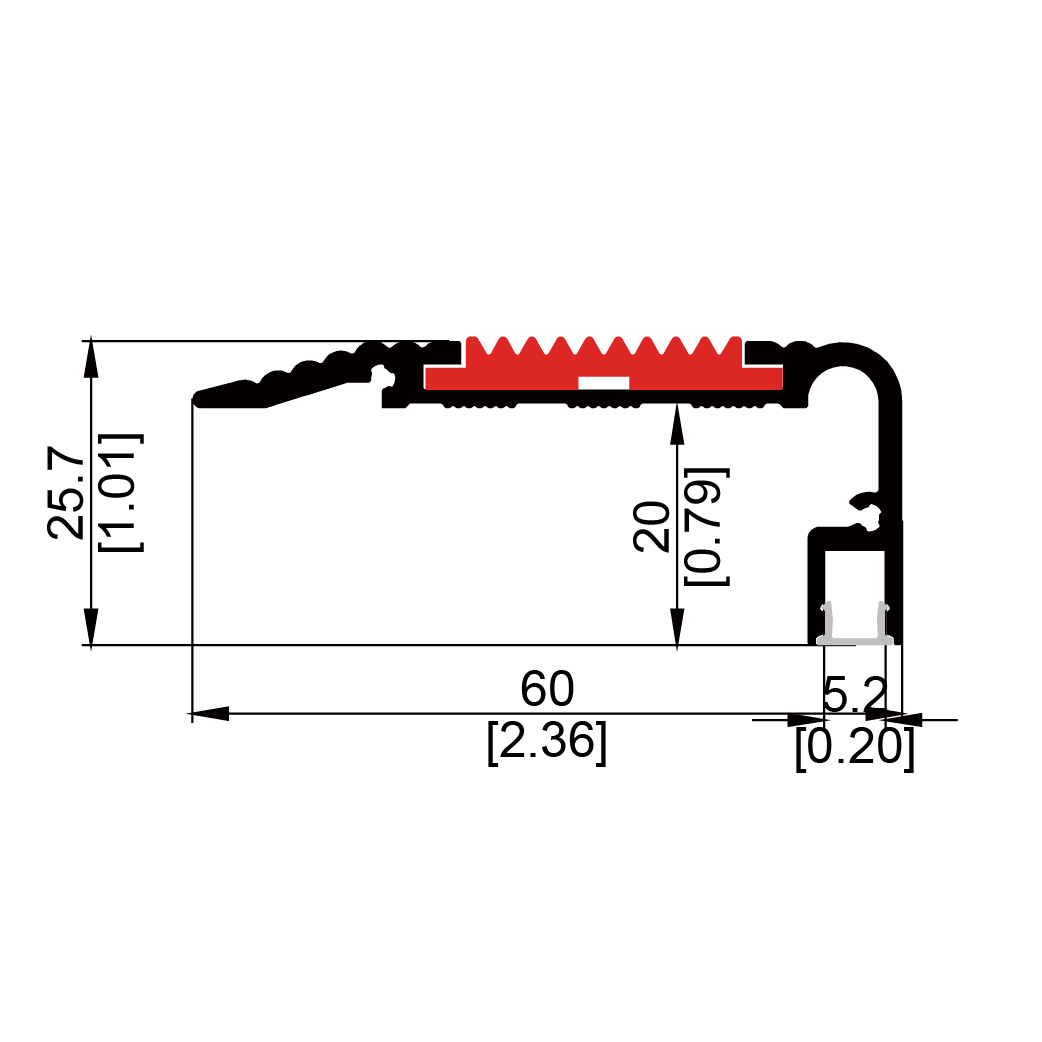

Dimensional Drawing
Product Composition
| Product Name | Material | RAL (Customized other colors available) | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|

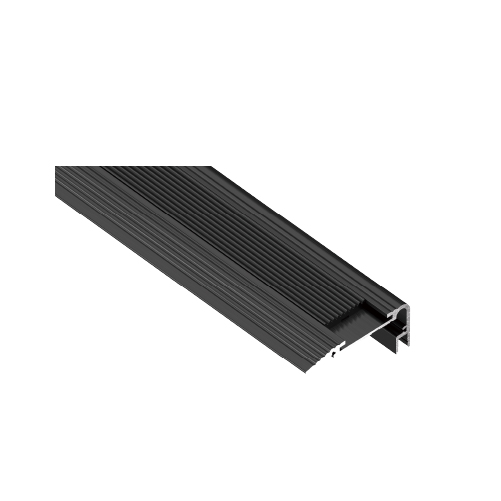

| QSG-6025 ALU Black |
|
6063-T5 |
RAL 9005
|
Push In |
1000mm
2000mm
2500mm
3000mm
|
| QSG-6025 ALU White |
|
6063-T5 |
RAL 9016
|
Insert Mounting |
1000mm
2000mm
2500mm
3000mm
|

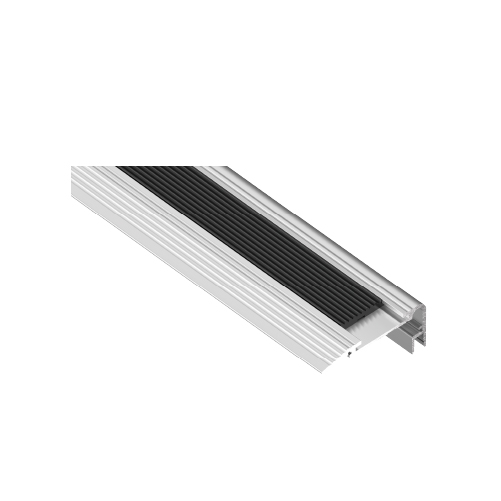

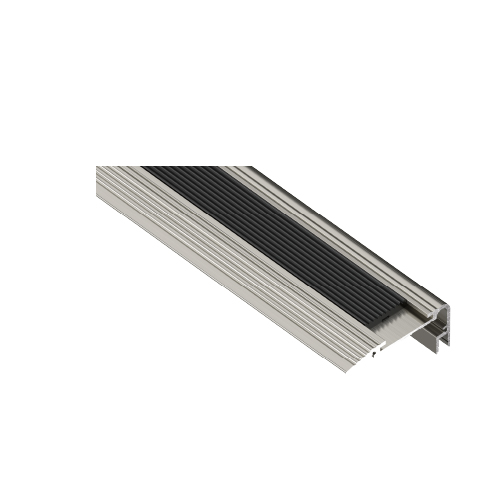

| QSG-6025 ALU Silver |
|
6063-T5 |
RAL 9006
|
Push In |
1000mm
2000mm
2500mm
3000mm
|
| Product Name | Material | Transmittance | Fire Rating | Installation Method | Reference Length(Other lengths can be customized) | |
|---|---|---|---|---|---|---|

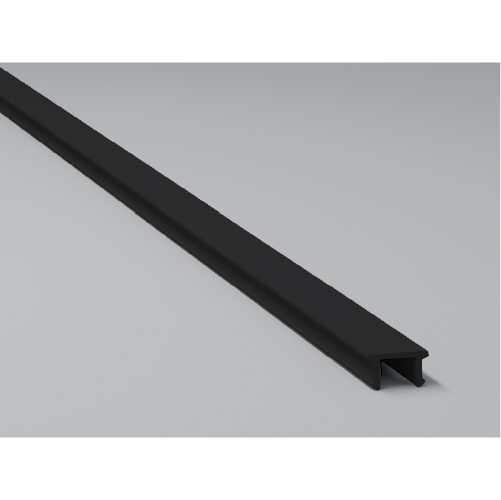

| QSG-4525 Black |
|
PC | 35%-30% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|

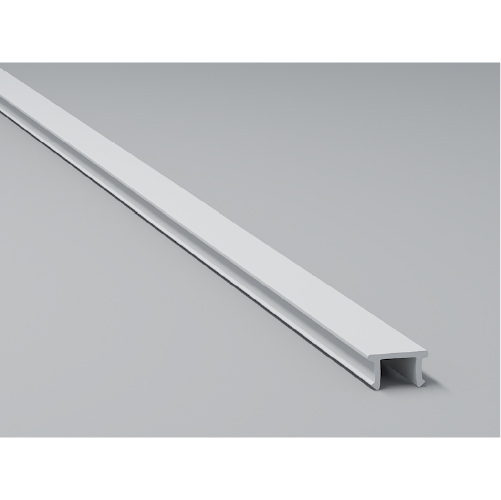

| QSG-4525 Opal |
|
PC | 65%-60% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|

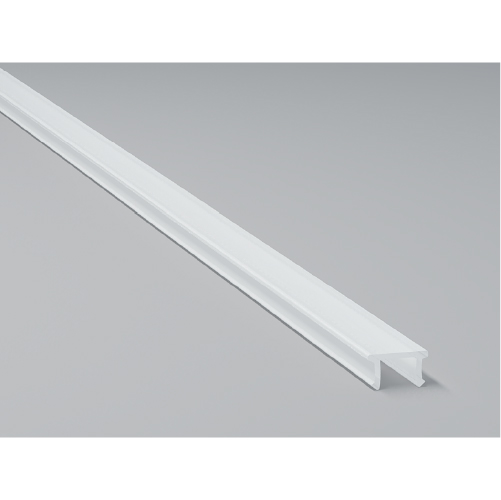

| QSG-4525 Diffuser |
|
PC | 80%-70% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|

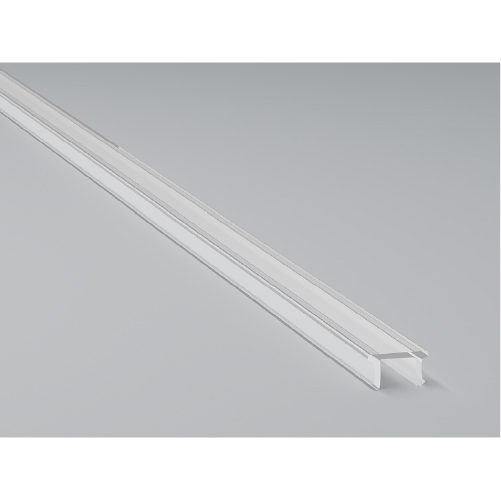

| QSG-4525 Clear |
|
PC | 95-90% | V0 | Push In |
1000mm
2000mm
2500mm
3000mm
|
| Product Name | Material | Color(Customized other colors available) | Installation Method | |
|---|---|---|---|---|
| QSG-6025 End Cap |
|
PP |
Black
White
Silver
|
Push In |
